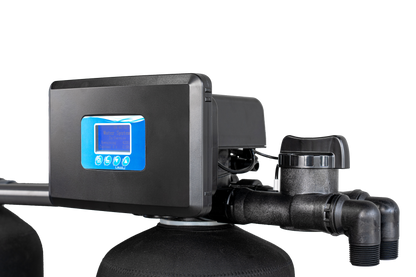

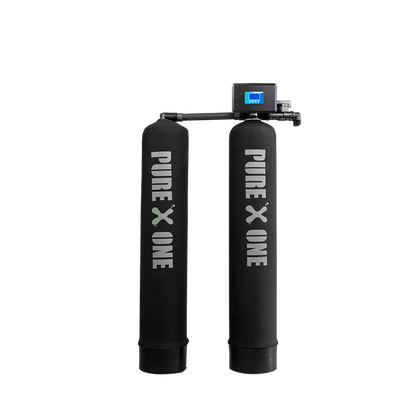

Pure X One Dual Tank Softner
Pure X One Dual Tank Softner
Couldn't load pickup availability

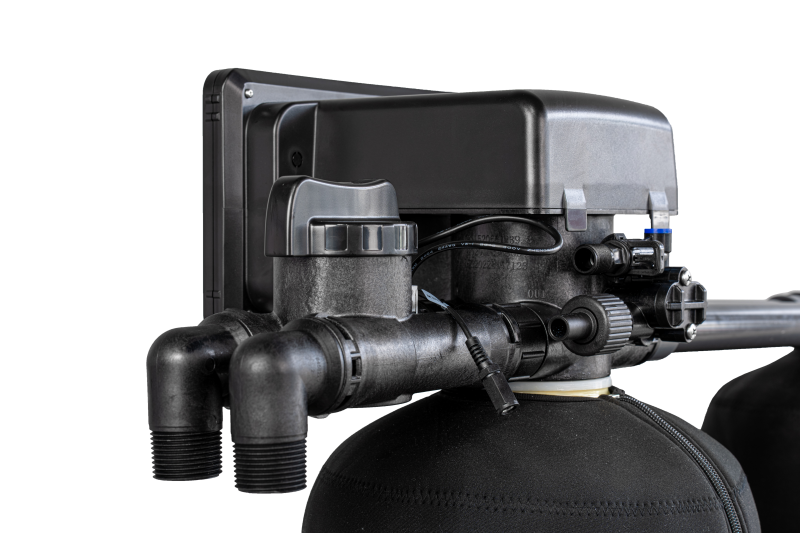

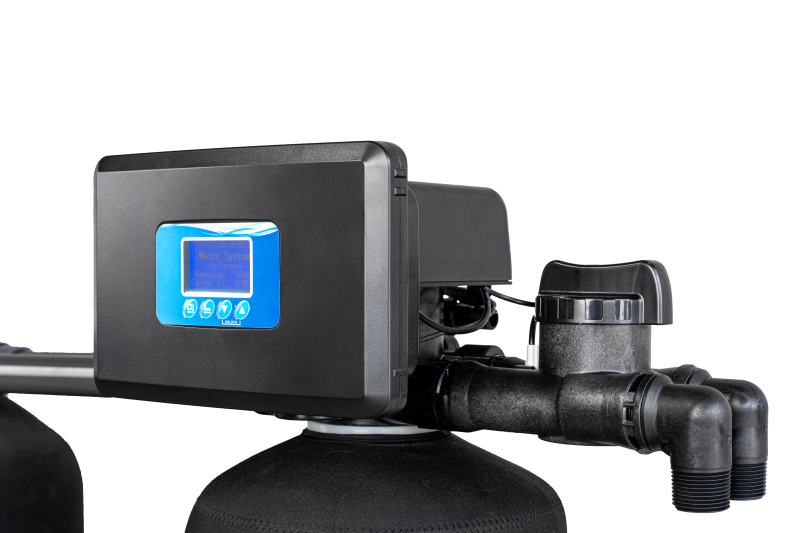

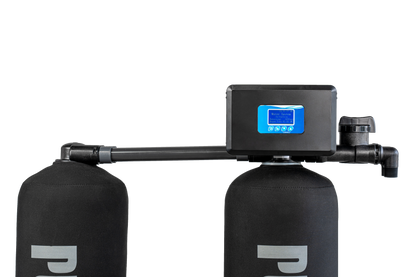

The 4 Heart Water™ features the most expandable and flexible valve on the market today. This valve utilizes up-flow regeneration to wash the media for more efficient and effective cleaning. Ultimate performance and reliability are available from the patented ceramic disc design with (7) seven advanced programming options with fully adjustable cycles.
Interlock features, signal outputs, and twin-demand options are available to supply water 24/7. Advanced work modes are available with (4) four adjustable cycle sequences to achieve the exact configuration needed for any application.
All ceramic components are guaranteed for life.
Corrosion Free Ceramic Disk Technology:
- Patented ceramic discs are corrosion and abrasion resistant for longer life and reduced maintenance
- Made of Corundum ceramic and graphene (200x stronger than steel!) with no wear parts to service or replace
- Hermetically sealed parts for impregnable resistance to corrosion, wear, or tear
- Maintenance-free actuators
- Ceramic Disk ByPass
- Lifetime guarantee on internal ceramic and graphene parts

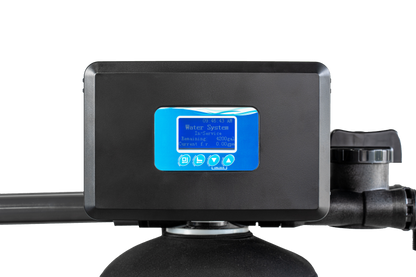

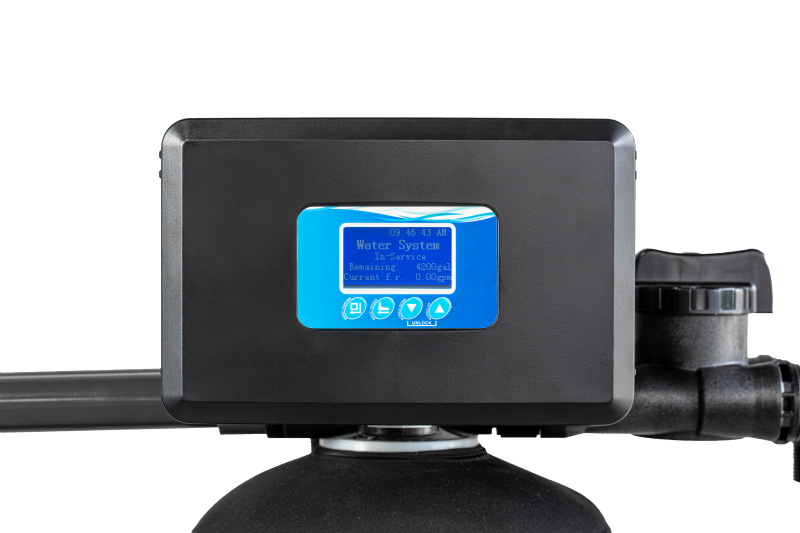

- Bright, easy to read LCD display
4 Heart Water™ Water Softening System
| Model | ARS-R | ARS-M | ARS-L | ARS-XL |
| Valve Flow Rate* | 28 GPM | |||
| Bypass Size | ¾”-1″ | 1″-1¼” | ||
| Softening Capacity | 28,000 Grains | 32,000 Grains | 48,000 Grains | 64,000 Grains |
| Resin Volume | 0.9 CUFT | 1.0 CUFT | 1.5 CUFT | 2.0 CUFT |
| Media Tank Size D-X-H | 8” X 44” | 9” X 48” | 10” X 54” | 12” X 52” |
| Brine/Salt Tank Size | 15” X 35” Square | |||
| Shipping Weight System | 87 LBS | 98 LBS | 125 LBS | 150 LBS |
| Shipping Weight Brine | 15 LBS | 16 LBS | 17 LBS | 18 LBS |
- Pressure drop at flow rates listed is less than 15 PSI .
Dedicated Full-Tank Activated Carbon Filtration
Advanced Whole-Home Filtration for Cleaner, Fresher Water

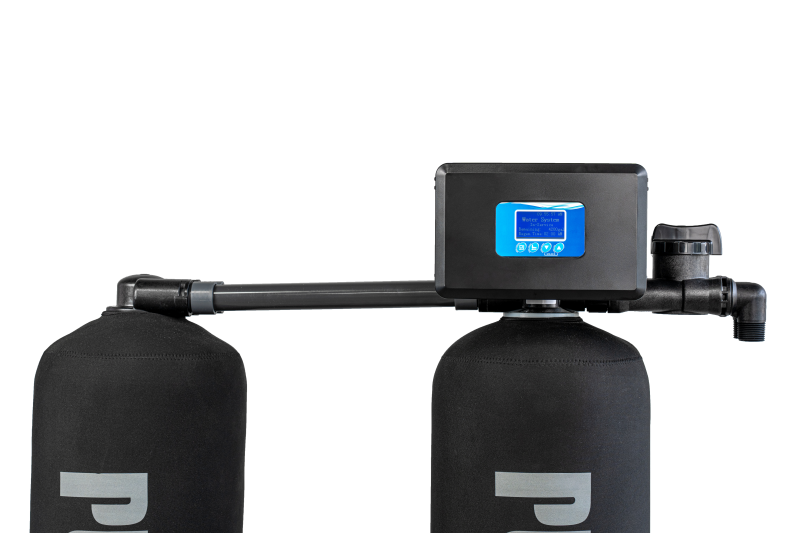

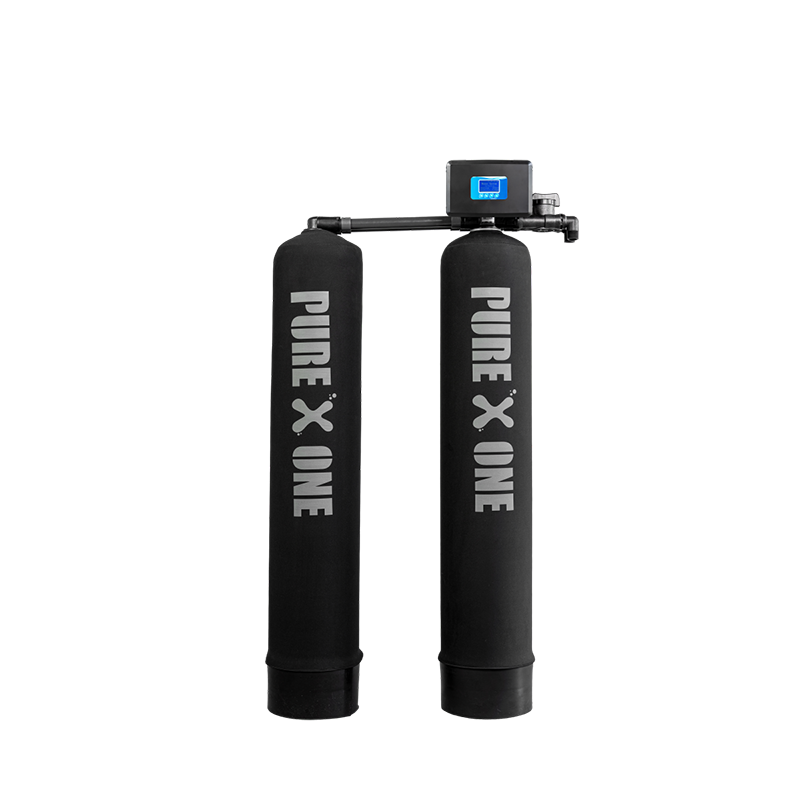

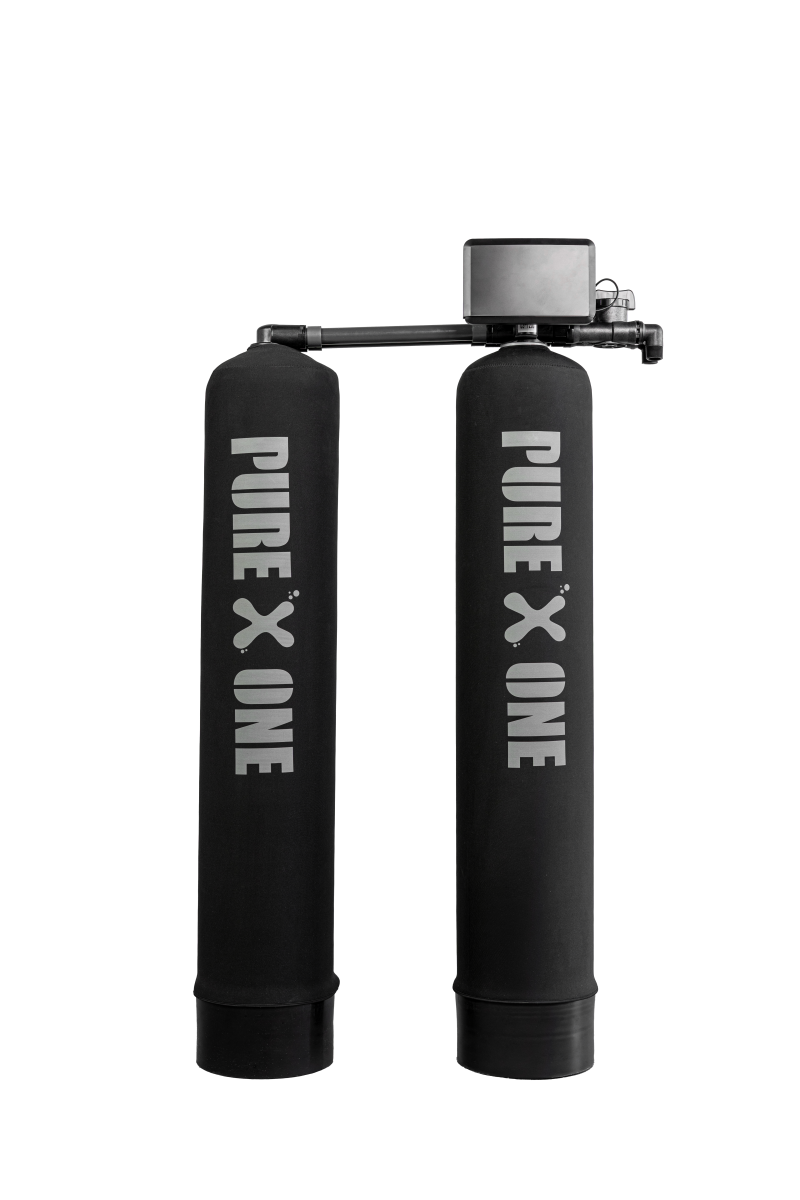

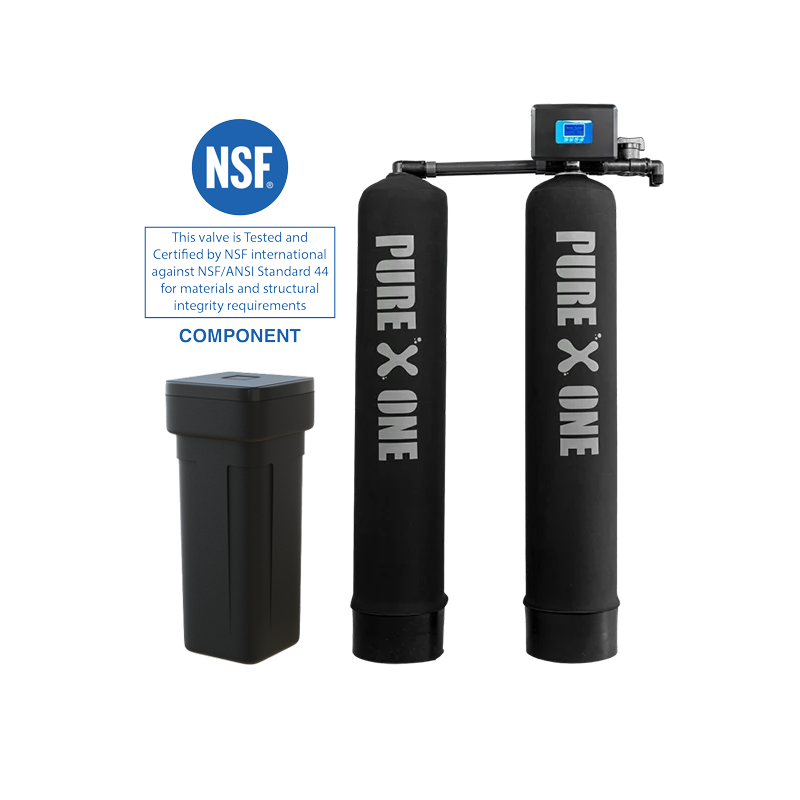

The Pure X One Dual Tank Water Softener features a dedicated activated carbon filtration tank filled with activated carbon media, providing an additional layer of whole-home water treatment beyond traditional water softening.
Unlike conventional water softeners that primarily address water hardness, Pure X One combines activated carbon filtration with high-performance ion-exchange resin to improve overall household water quality.
Key Benefits
* Reduces Chlorine: Helps reduce residual chlorine commonly found in municipal water supplies.
* Improves Taste & Odor: Helps minimize unpleasant chlorine taste and odors for fresher, better-quality water throughout your home.
* Helps Reduce Organic Impurities: Activated carbon adsorbs certain organic compounds that may affect water quality.
* Protects Water Softening Resin: Helps reduce chlorine exposure that can accelerate resin deterioration, supporting longer-lasting performance.
* Dedicated Carbon Filtration Tank: A separate tank filled with activated carbon media provides a dedicated filtration stage rather than relying on a small carbon cartridge.
* Whole-Home Water Treatment: Delivers the benefits of activated carbon filtration to water used for showering, laundry, cleaning, and everyday household activities.Two Powerful Water Treatment Technologies
Activated Carbon Filtration — Helps reduce chlorine, unpleasant tastes, odors, and certain organic impurities.
High-Capacity Water Softening Resin — Reduces calcium and magnesium hardness minerals to help prevent scale buildup and protect plumbing fixtures and household appliances.
More Than Just a Water Softener
With its dedicated activated carbon filtration tank and advanced water softening technology, Pure X One delivers a more comprehensive whole-home water treatment solution.
Softer Water. Less Chlorine. Fresher Water Throughout Your Home.
